NJDOT’s “Weather Savvy Roads” System Receives 2021 Outstanding Project Award from ITS-NJ

The Intelligent Transportation Society of New Jersey (ITS-NJ) recognizes outstanding projects or programs that employ or advance ITS technologies. This year NJDOT’s “Weather Savvy Roads” system, also known as the Mobile RWIS effort, received its 2021 Outstanding Project Award.

NJDOT’s Weather Savvy Roads Program was recently recognized by the Intelligent Transportation Society of New Jersey

NJDOT’s Weather Savvy Roads (WSR) program started with NJDOT’s Mobility Division applying for and receiving NJ’s first federal Accelerated Innovation Deployment (AID) grant.  The concept was to procure and install mobile RWIS devices and dash cameras in 23 DOT snow-fighting vehicles statewide to view real time conditions and guide decisions for allocation of resources during a winter event.

The team is comprised of staff from NJDOT Mobility, NJDOT Operations, the NJIT ITS Resource Center, and technical partners from Vaisala and EAI.  NJIT created a web-based platform where users could view a statewide map and data from the RWIS devices and video from the CCTV6 in real time.

The WSR project was also designed to continue NJDOT’s investigation into cellular strength along NJDOT’s road network. This effort was first evaluated during NJ STIC Incentive grant funded program using iCone devices on SSP trucks. Utilizing a cellular router carrying FIRSTNET cellular capability, the technical team at NJIT is evaluating the strength of this first responder-only focused cellular system to see the various levels of signal strength. The project has shown tremendous benefits after just one winter season with staff across multiple levels of the Department utilizing the web platform to make better informed decisions about staffing and contractor use.

To learn more about the project, click on the NJ Innovative Initiatives, Weather Responsive Management Strategies page, or watch a presentation to the NJ STIC by Sal Cowan, Senior Director of Mobility at NJDOT about the equipment installation and web interface efforts taken for the pilot project.

See the FHWA’s Innovation Spotlight video on Road Weather Management: Weather Savvy Roads.

Launching the UAS Program: STIC Incentive Funding Grant – Final Report

Click for report

Unmanned Aerial Systems (UAS), or drones, were promoted by the Federal Highway Administration (FHWA) as one of the Every Day Counts Round 5 (EDC-5) innovations. In 2017, the NJDOT Bureau of Aeronautics applied for and received a NJ State Transportation Innovation Council (STIC) Incentive Program Funding grant to purchase equipment and provide training to evaluate the use of UAS for applications within NJDOT. Prior research had determined that this innovative technology could improve safety and efficiency and reduce costs.

The final report, Unmanned Aircraft System (UAS): Purchase and Training, describes the use of the STIC funding to assist in establishing the UAS program within the Bureau of Aeronautics.  The report describes the training curriculum and two use cases — high mast inspection and traffic incident management — and offers lessons learned and best practices.

The STIC grant, in combination with two other grants, enabled the Bureau to advance UAS within NJDOT. The innovation is now considered institutionalized within the agency.  A video, Drone Technology at NJDOT, highlights the efforts to launch and integrate UAS in NJDOT operations.

FHWA offers up to $100,000 to each STIC each year. You can find out more about the STIC Incentive Program here.

Image of a street iwth four lanes for traffic, three parked cars, and a series of shops, such as center city deli, hi five, Ocean Therapy, and casino city barber and salon

ATLANTIC AVENUE, ATLANTIC CITY: Planning for Safer Conditions for All Roadway Users

Image of a bus with passengers boarding, reading Atlantic Avenue Road Safety Audit Atlantic City, New Jersey, Report, December 2014

The Atlantic Avenue Road Safety Audit was performed by a multidisciplinary team that analyzed high incident areas along the route, courtesy NJDOT

Atlantic City, well known for its resorts, casinos, and boardwalk, has a large share of residents who use alternative transportation modes daily: about 30 percent of its residents use public transit and 17 percent walk to work. On centrally-located Atlantic Avenue, high pedestrian volumes and a disproportionate number of traffic incidents have prompted several studies to determine the scope of needed infrastructure improvements to support pedestrian and bicycle safety and address deficiencies for vehicular travel.  New Jersey Department of Transportation (NJDOT), and the South Jersey Transportation Planning Organization (SJTPO), the regional Metropolitan Planning Organization, in partnership with the City, supported these studies to analyze conditions along the route and to make recommendations for a safer corridor.  The decade-long planning process for the Atlantic Avenue corridor provides an example of collaboration between the municipality, SJTPO and NJDOT to implement safety improvements for all roadway users.

The planning process used strategies such as Data-Driven Safety Analysis and Road Safety Audits that are supported by the Federal Highway Administration (FHWA). Many of the study recommendations include safety countermeasures that FHWA has promoted through its Every Day Counts (EDC)-4 and EDC-5 Safe Transportation for Every Pedestrian, or STEP, Innovative Initiative. These strategies include Leading Pedestrian Intervals, Crosswalk Visibility Enhancements, Pedestrian Crossing/Refuge Islands, and Road Diets. The EDC program identifies proven and underutilized innovations and promotes rapid deployment.

About the Corridor

Atlantic Avenue is a major thoroughfare through the center of Atlantic City. The street is 69 feet wide, with four travel lanes and a fifth lane at some intersections for turning. Along the corridor, there are retail and commercial centers, a bus terminal, healthcare facilities, and a public library. Eleven bus stops, each accommodating up to ten different bus routes, provide frequent transit service and contribute to high pedestrian volume. The Atlantic City Rail Terminal is situated several blocks to the Northeast, adding to pedestrian trips.

Due to high foot traffic, and the nature of the roadway, this segment of Atlantic Avenue saw 829 crashes in a five-year period, from 2013 to 2017. Compared to the rest of the municipality, three times as many incidents involving pedestrians, and twice as many involving cyclists occurred along this 2.65 mile stretch. Recognizing the ongoing challenges, leaders and transportation planners at both the City and the South Jersey Transportation Planning Organization (SJTPO) initiated the process to study safety improvements for this important corridor.

2011 – A Policy Framework

Following NJDOT’s adoption of a Complete Streets policy in 2009, Atlantic City passed its 2011 Complete Streets policy to promote consideration of the safety of all roadway users in infrastructure planning. The resolution mentions the need to improve safety for cyclists and all users of a street, such as the elderly, non-drivers, and the mobility impaired. It acknowledges, too, that incorporating pedestrian and cyclist infrastructure can simultaneously reduce traffic congestion and fossil fuel emissions. The 2011 resolution and policy supports the City Planning Department’s goals of improving bicycle and pedestrian safety and accessibility, enhancing economic development, and developing initiatives to increase residents’ knowledge of safe bicycle and pedestrian travel (Atlantic City Resolution No. 917).

2013  – Atlantic City Bicycle and Pedestrian Plan

Image of plan cover page, the first reads Atlantic City, always turned on, Bicycle and Pedestrian Plan, Local Planning Assistance Program, Final May 2013, an dbelow four square images, clockwise of people crossing a street, a man in a wheelchair waiting to cross, a young girl feeding gulls on the boardwalk, and people biking along the boardwalk. Below it reads Prepared for: The New Jersey Department of Transportation and the City of Atlantic City.

The Bicycle and Pedestrian Plan helped to first identify problem areas along Atlantic City's Atlantic Avenue, courtesy NJDOT

NJDOT funded the 2013 Atlantic City Bicycle and Pedestrian Plan through the agency’s Office of Bicycle and Pedestrian Programs Local Technical Assistance Program (LTAP), which helps New Jersey municipalities improve active transportation infrastructure.

Consultants analyzed the City’s bicycle and pedestrian network, and made suggestions for improvements in areas of concern. Among the City’s streets, the Atlantic Avenue corridor ranked first for both pedestrian and bicycle crashes. Analysts also identified the corridor as the location of 8 of the top 10 intersections for pedestrian or bicycle crashes.

According to the Plan, “Pedestrian safety is imperative not only because each of us becomes a pedestrian as part of every trip, but also because creating safe walkable streets is critical to the success of the City redevelopment and tourist efforts.” However, the document notes that, at the date of publication, there were no dedicated bicycling facilities in Atlantic City. (Atlantic City Bicycle and Pedestrian Plan).

The 2013 Plan suggested several alternatives for street design interventions in Atlantic City. On Atlantic Avenue, Alternative 1 involved removing a lane of travel in each direction, widening the median, installing buffered bike lanes between Ohio and Maine Avenues on the corridor. In the same stretch, Alternative 2 proposed using parking as a buffer for bike lanes abutting the curb on each stretch. The report concluded by calling for the formation of a task force of stakeholders to discuss the implementation of such road diets.

2014 – Atlantic Avenue Road Safety Audit (RSA)

Graphic with a depiction of a magnifying glass covering a road with people walking on it, reading "Road Safety Audits: a Road Safety Audit is a proactive formal safety performance examination of an existing or future road or intersection by an independent and multi disciplinary team. Safety Benefit: 10 to 60 percent reduction in total crashes.

RSA's were one of the safety countermeasures FHWA promoted through EDC-4 and EDC-5, courtesy FHWA

The following year, the Transportation Safety Research Center (TSRC) at the Rutgers Center for Advanced Infrastructure and Transportation (CAIT), in collaboration with the South Jersey Transportation Planning Organization (SJTPO) and the City of Atlantic City, conducted a road safety audit of the most heavily trafficked portion of Atlantic Avenue, between South Carolina and Michigan Avenues. This study analyzed dangerous intersections in depth along the Atlantic Avenue corridor.

Road Safety Audits (RSA) are one of FHWA’s proven safety countermeasures. An RSA, conducted by a multi-disciplinary team that is independent of the design team, considers all road users and their capabilities and limitations. Findings are documented in a formal report and, while they do not constitute engineering studies, require a response from the road owner. RSAs can result in a 10-60 percent reduction in crashes.

According to FHWA, advantages of an RSA include:

  • Reduced number and severity of crashes due to safer designs.
  • Reduced costs resulting from early identification and mitigation of safety issues before projects are built.
  • Improved awareness of safe design practices.
  • Increased opportunities to integrate multimodal safety strategies and proven safety countermeasures.
  • Expanded ability to consider human factors in all facets of design.

Based on crash data, the RSA identified pedestrian “hot spot” and corridor locations along Atlantic Avenue, between Mississippi Avenue and Virginia Avenue. The study looked at crashes according to time of year, week, and day; lighting conditions; collision type and severity; and intersection.

Bar graph reading Crash Type and Severity, the tallest bars (by a wide margin) are same direction, rear end, and same direction, side swipe. Pedalcyclist and pedestrian collisions rank very high as well.

Many of the incidents involved vehicles striking each other in the same direction, one motivation for the road diet, courtesy SJTPO.

NJDOT provides network screening lists to the three Metropolitan Planning Organizations which identify hot spot and corridor locations based on crash data. The RSA analysts took this data for the SJTPO region and then worked to identify the source of the crashes by examining geometric and physical characteristics of the location. The process involved looking at types of crashes and other details to establish patterns, and then suggesting countermeasures to address those problems. These hot spot lists are crucial to securing federal funding for infrastructure improvements such as the proposed road diet.

The Road Safety Audit identified issues, such as signal phasing, roadway maintenance, and lack of bicycle facilities, and made recommendations. Like the 2013 Bicycle and Pedestrian Master Plan, the 2014 Road Safety Audit provided two road diet alternatives, suggesting the removal of one lane to accommodate bike lanes and a median with a turning lane. Road diets are promoted by FHWA as a safety countermeasure that improves speed limit compliance, reduces crashes, and provides a space for enhanced bicycle and pedestrian facilities.

2020 – Atlantic Avenue Road Safety Assessment

PDF cover, reading January 2020, Road Safety Assessment, Atlantic Avenue, Atlantic City, Atlantic County, NJ, then there are three images of the route, rather car-oriented in design, followed by text: Road Safety Assessment, Atlantic Avenue from Boston Avenue to Maine Avenue

A final Road Safety Assessment was performed in 2020, recommending a road diet, with a median and protected bike lanes, courtesy City of Atlantic City

Building on the findings of the 2014 report, consultants in 2019 conducted a data-driven analysis of the conditions along Atlantic Avenue from Boston Avenue to New Hampshire Avenue, and recommended safety countermeasures to improve pedestrian safety, reduce the frequency of vehicular collisions, and improve traffic flow.

The 2020 Atlantic Avenue Road Safety Assessment looked at all crashes along the entire corridor, by crash type (pedestrian, bicycle, parked vehicle), and by intersection. Consultants also conducted travel time runs during each of the corridor’s scheduled signal timing schedules. They engaged in site visits to look for causes of crashes and to observe the condition of the roadway infrastructure, and then developed statistical observations and recommendations from their findings.

Overall, they found a lack of consistency on the roadway that resulted in unpredictable driving conditions. In one example, poorly timed signals caused drivers to try to “beat” the light, which, in combination with poor pedestrian visibility and infrastructure, led to collisions.

For a recommendation, the consultants cite NJDOT guidance for bikeway selection. At the current vehicle traffic figures (Annual Average Daily Traffic 15,000) and an 85th percentile speed of 35 mph, NJDOT recommends a Buffered Bicycle Lane, Separated Bicycle Lane or Shared Use Path. The report presented two preferred options, Alternatives #5 and #6, each of which involve removing a driving lane and adding a median; Alternative #6 would place the bikeway between the curb and parked cars, to decrease the chance of “dooring.” These alternatives recall those suggested by the 2013 Master Plan.

2021 – Atlantic Avenue Road Diet Implementation

Twelve years after Atlantic City passed its Complete Streets policy, a road diet will be built, extending the length of Atlantic Avenue. The four-lane road will be reduced to two travel lanes with a center median. Protected bicycle lanes will be located between the travel lane and curbside parking, in both directions. Other countermeasures to be implemented echoed those called for in the 2013 Bicycle and Pedestrian Master Plan, including leading pedestrian intervals, traffic signal heads with backplates, and targeted left turn restrictions. According to City Engineer Uzo Ahiarakwe, improvements to some intersections will include bump-outs to decrease the distance that pedestrians need to cross Atlantic Avenue, synchronization of traffic lights, higher visibility crosswalk striping, and ADA-compliant curb cuts.

Atlantic Avenue’s road diet conversion and additional infrastructure improvements will cost between $8 and $10 million. The City expects to cover 10 percent of the project cost and to receive federal funding for the remaining 90 percent. The project is set to go out to bid in Fall 2021 with construction due to be complete in Summer 2022 (Brunetti).



Resources

Brunetti, Michelle. Atlantic City putting Atlantic Avenue on a ‘diet’. March 5, 2021. Press of Atlantic City. https://pressofatlanticcity.com/news/local/atlantic-city-putting-atlantic-avenue-on-a-diet/article_f9b1e44f-43f0-5cf2-9b8a-91e4c1d3fb0e.html

City of Atlantic City. (2011). Resolution Establishing and Adopting a City of Atlantic City Complete Streets Policy. City of Atlantic City. http://njbikeped.org/wp-content/uploads/2012/05/Atlantic-City-Complete-Streets-Resolution.pdf

City of Atlantic City. (2013). Atlantic City Bicycle and Pedestrian Plan. Local Planning Assistance Program. City of Atlantic City. https://njcrda.com/wp-content/uploads/Atlantic-City-LTA-Final-Report.pdf

Federal Highway Administration. Road Safety Audits. Federal Highway Administration. https://safety.fhwa.dot.gov/rsa/

Federal Highway Administration. Proven Safety Countermeasures: Road Safety Audits. Federal Highway Administration. https://safety.fhwa.dot.gov/provencountermeasures/road_safety_audit/

Federal Highway Administration. Proven Safety Countermeasures: Road Diets. Federal Highway Administration. https://safety.fhwa.dot.gov/provencountermeasures/road_diets/

JMT. (2020, January). Road Safety Assessment: Atlantic Avenue, Atlantic City, Atlantic County, NJ. City of Atlantic City. https://www.njdottechtransfer.net/wp-content/uploads/2021/07/19-01474_Road_Safety_Assessment_Report.pdf

South Jersey Transportation Planning Organization. Atlantic Avenue Road Safety Audit. South Jersey Transportation Planning Organization. https://www.sjtpo.org/wp-content/uploads/2020/05/2014_AC_Atlantic-Avenue-RSA-Report.pdf



Highway Crowdsourcing

STIC Incentive Grant Award: Crowdsourcing Traffic Data to Optimize Roadway Monitoring

The Federal Highway Administration recently awarded the New Jersey Department of Transportation (NJDOT) a $55,000 State Transportation Improvement Council (STIC) incentive grant for the purpose of piloting a crowdsourced data platform to improve roadway monitoring operations.

NJDOT operates two Mobility Operations Centers that monitor conditions on more than 7,500 lane miles throughout the state. In 2017, a New Jersey Institute of Technology study found that the centers were only aware of 6.5 percent of crashes when compared with statewide records from the same time period. NJDOT plans to use this STIC grant to test software that could dramatically improve monitoring performance.

Slide image of a computer depicting a map with vehicles on it, text above it reads: Waycare is a cloud-based platform that provides AI solutions for proactive traffic management. To the left text reads: Automated Incident Detection, Crash Prediction and Forecasting, Irregular Congestion Detection, and Collaborative Tools for Faster Response
The Waycare Platform

The “Enhanced Crowdsourcing for Operations in New Jersey” pilot will fund a test of the Waycare traffic management platform, software that aggregates data points and uses Artificial Intelligence for predictive traffic monitoring. The $55,000 grant from the FHWA will finance the implementation of this technology for a limited section of roadway, and help NJDOT analyze whether the cloud-based data-aggregation platform can significantly assist the agency with predictive and real-time traffic monitoring.

Several states across the country, including California, Texas, Florida, and North Carolina, have successfully deployed the Waycare platform. Waycare takes data such as information about hazardous weather or sudden braking from a variety of sources (Waze, INRIX, Ticketmaster, etc.), aggregates them, and uses artificial intelligence to predict where accidents and congestion are occurring. This granular-level driving data would be sourced from around 1 in 10 vehicles in the state—information which could then be passed on to NJDOT’s Mobility Operations Centers. The platform’s collaborative, shared dashboard would also enable monitoring in the field, and potentially speed up the dispatching of emergency and maintenance vehicles. The promise of the technology is to comprehensively revamp how NJDOT monitors traffic operations, transitioning from a few, human-monitored data points to many, aggregated and prioritized by AI.

Slide reading: Platform ingests data from a vast amount of sources to provide highly accurate insights and predictions. Below this text, there are logos of companies, such as Volvo, Waze, iCone, Siemens, and Ticketmaster.
Data sources used by Waycare

NJDOT applied for funding from the FHWA’s Every Day Counts (EDC) program, which is currently in its sixth round and known as EDC-6. The program provides grants for projects that champion underutilized innovations and promise quick delivery times, and has highlighted Crowdsourcing for Advancing Operations as a key theme for this two-year grant cycle. Once funds are disbursed, the NJDOT Crowdsourcing pilot could begin operations in as little as six months.

Through the program, NJDOT will monitor the performance of the Waycare platform with regards to how it affects roadway monitoring and incident response times, as well as the efficacy of the crowdsourced data when compared to the existing statewide crash records. The overall goal for this two-year project is to find new, more comprehensive means of monitoring traffic for New Jersey.

Sal Cowan, Senior Director of Transportation Mobility in NJDOT’s Transportation and Operation Systems and Support Unit, presented this at the NJ STIC Spring 2021 meeting. The full presentation can be viewed here.

Next-Generation TIM: Integrating Technology, Data, and Training

What is Next-Generation TIM: Integrating Technology, Data, and Training?

New methods for improving Traffic Incident Management (TIM) programs aim to increase traveler and responder safety and improve trip reliability and commerce movement on all roadways.

Over 6 million reportable crashes occur every year in the United States. Each crash places responders and motorists at risk of secondary crashes while having a severe impact on congestion. New tools, data, and training mechanisms can be used to improve safety and reduce clearance times at roadway crashes. New and existing TIM programs, including those for local agencies and off-interstate applications, will benefit from using enhanced TIM practices on all roadways to save lives, time, and money.

A New Generation of TIM

While the FHWA's national TIM responder training program successfully trained almost 500,000 responders to clear incidents collaboratively, safely, and quickly, it was largely focused on agencies that respond on interstates and high-speed roadways. Next-generation (NextGen) TIM increases the focus on local agency TIM programs while integrating new and emerging technology, tools, and training to improve incident detection and reduce safety response and clearance times on all roadways.

Traditionally, transportation agencies capture incidents (crashes, roadway debris, stalled vehicles on mainlines, etc.) where sensor technologies are installed, where safety service patrols are present, or when contacted by public safety/law enforcement agencies. NextGen TIM significantly expands this capacity. It enables agencies to improve TIM strategies by implementing new options such as back-of-queue warning, navigation-app notification of active responders in the vicinity, notification-based incident detection using crowdsourced data, and more.

By using NextGen TIM methods, State and local agencies can increase traveler and responder safety, improve trip reliability and commerce movement, and enable responder communities to focus more resources on other pressing citizen needs.

Benefits

Increased Safety. NextGen TIM targets advances in safety through engineering, enforcement, education, and emergency services to help keep responders, drivers, and pedestrians safe across freeway, arterial, and multimodal travel.

Improved Travel Times. Training, data, and technology combine to help local and State agencies reduce secondary crashes and clearance times, improving trip reliability and increasing motorists' awareness of active responders along their travel routes.

Improved Operations. Integrating new and emerging technology, tools, and training can improve incident mitigation and safety throughout the whole TIM timeline, from incident detection to clearance on all roadways.

Learn more about this EDC-6 Innovation.

How NJ Incorporates NextGen Traffic Incident Management (TIM)

Stage of Innovation:
DEVELOPMENT
(July 2021)

Research. NJDOT is coordinating with State Police to determine communications that will be shared with Computer-Aided Dispatch (CAD) integration. NJDOT is also working to establish radio channels to enable coordinated DOT and law enforcement communications at incident sites.

Training. NJDOT is actively working towards achieving participation by all local agencies in the NJDOT established statewide TIM training course.

Building Support. DVRPC area-generated incident management task forces can serve as models for creation of similar diverse stakeholder task forces in other regions. NJDOT is also looking to build partnerships with media to facilitate TIM communications.

What’s Next?

For the EDC-6 initiative, the NJDOT will focus on CAD integration. It is one of the major activities in support of the TIM strategic plan. The goals of the project include reducing incident response time and duration. To achieve this, the agency seeks to establish and implement the standard/efficient use of technology and promote the integration of traffic operations centers and law enforcement CAD systems.







Next-Generation TIM: Integrating Technology, Data, and Training: NEW & NOTEWORTHY

Image of backed up traffic and first responder in neon vest standing on highway

NextGen Traffic Incident Management (TIM) Webinar Series

A series of FHWA-hosted webinars spotlights ongoing NextGen TIM implementations and best practices. ...

Developing Next Generation Traffic Incident Management in the Delaware Valley

DVRPC's Traffic Incident Monitoring (TIM) platform provides system-wide traffic operators, first responders, and highway planners. ...
Highway Crowdsourcing

STIC Incentive Grant Award: Crowdsourcing Traffic Data to Optimize Roadway Monitoring

The Federal Highway Administration recently awarded the New Jersey Department of Transportation (NJDOT) a $55,000 State Transportation Improvement Council (STIC) incentive grant for the purpose ...

Final Report Released for the Connected Vehicles Program Pilot Testing of Technology for Distributing Road Service Safety Messages from Safety Service Patrols

NJDOT’s top priority is to improve highway safety. To support this goal, in September 2018, New Jersey began a pilot study of the effectiveness of ...

Connected Vehicles Program Pilot Testing of Technology for Safety Service Patrol Workers Continues

The pilot study continues to examine the effectiveness of connected vehicle technology to alert motorists to Safety Service Patrol (SSP) workers at an incident site. ...

New Jersey Pilots Connected Vehicles Program to Protect Safety Service Patrol Staff

This study will examine the effectiveness of connected vehicle technology to alert motorists to Safety Service Patrol (SSP) workers at an incident site. ...

e-Ticketing

Implementing e-Ticketing, and the related practice of using digital as-builts, into project delivery enhances safety, quality, and cost savings by improving the accessibility of project data.

Highway construction projects produce massive amounts of valuable data. Historically, information such as materials tickets and as-built plans were communicated via paper. Today's transportation agencies are improving on these paper processes by integrating them into electronic and digital workflows. Electronic ticketing (e-Ticketing) improves the tracking, exchange, and archiving of materials tickets. Digital information, such as 3D design models and other metadata, can enhance the value of contract documents and the future usability of the as-built plans for operations, maintenance, and asset management. Both can increase project safety and quality through efficient data gathering and sharing.

What is e-Ticketing?

Providing all stakeholders with an electronic means to produce, transmit, and share materials data and track and verify materials deliveries enhances safety, streamlines inspections, and improves contract administration processing. Using electronic ticket (e-Ticket) exchanges enables access via mobile devices and simplifies handling and integration of material data into construction management systems for acceptance, payment, and source documentation.

Benefits

Safety. e-Ticketing enhances data collection while reducing exposure to adjacent vehicular traffic and construction equipment for inspectors and work crews while retrieving paper tickets.

Time Savings. Real-time access, via electronic handling of tickets, reduces processing time for quality assurance and payment, decreasing the inherent delays in paper-based project administration.

Quality. Project documentation is more consistent and efficient using e-Ticketing platforms. Standardized data enables archiving for future reference, leading to improved design, construction, maintenance, and operations.

Learn more about this EDC-6 Innovation.

How NJ Incorporates e-Ticketing

Stage of Innovation:
DEVELOPMENT
(July 2021)

New Jersey has taken several steps to advance its use of e-Ticketing and to encourage its partners to adopt its use.

Research. NJDOT has collected and reviewed information, guidance, research, and best practices on the implementation and use of e-Ticketing techniques.

Training. NJDOT has participated in e-Ticketing trainings, peer exchanges, and workshops.

Building Support. NJDOT is working with internal and external partners, stakeholders, and vendors to advance the use of e-Ticketing. The agency has also identified individuals for an implementation team.

What’s Next?

A NJDOT e-Ticketing working group was formed that will work to advance this innovation by pursuing tasks including seeking guidance from other state DOTs on their e-Ticketing related interactions with vendors and procedures and policies.





e-Ticketing: NEW & NOTEWORTHY



Crowdsourcing for Advancing Operations

What is Crowdsourcing for Advancing Operations?

Crowdsourcing is focused on employing the collective experience of a number of people to manage a process. Crowdsourced data can be obtained whenever and wherever people travel, allowing agencies to capture in real time what happens between sensors, in rural regions, along arterials, and beyond jurisdictional boundaries. Agencies at all levels can use crowdsourced data integrated from multiple streams to optimize roadway use for reduced congestion and increased safety and reliability.

State and local transportation systems management and operations (TSMO) programs strive to optimize the use of existing roadway facilities through traveler information, incident management, road weather management, arterial management, and other strategies targeting the causes of congestion. TSMO programs require real-time, high-quality, and wide-ranging roadway information. However, gaps in geographic coverage, lags in information timeliness, and life-cycle costs for field equipment can limit agencies' ability to operate the system proactively.

Benefits

Public agencies at all levels are increasing both their situational awareness and the quality and quantity of operations data using crowdsourcing, which enables staff to apply proactive strategies cost effectively and make better decisions that lead to safer and more reliable travel while protecting privacy and security of individual user data.



Learn more about this EDC-6 Innovation.

How NJ Incorporates Crowdsourcing for Advancing Operations

Stage of Innovation: DEVELOPMENT
(July 2021)

New Jersey has been a leader in using crowdsourcing data to advance operations since 2008. The following activities occurred in under previous EDC rounds:

Acquired Two Probe Data Sets. Crowdsourcing data from INRIX and HERE (via TRANSCOM partnership) is used for real-time performance management and traffic monitoring for roadway management and event after actions.

Incorporated Crowdsourcing Data Sets. TRANSCOM tools such as Data Fusion Engine (DFE) and Selected Priorities Applied to Evaluate Links (SPATEL) aggregate all available data sources for operations, analysis, and performance measures.

Piloted a Connected Vehicle Program.  The pilot study funded through a STIC Incentive Grant seeks to protect safety service patrol staff by alerting drivers in real-time of their presence at an incident site through apps such as Waze and Google.

What's Next?

For the EDC-6 initiative, the NJDOT has submitted a STIC incentive funding proposal to collaborate with a crowdsource information service provider (ISP). The goals of the pilot project include:

Utilize the data set provided by the crowdsource ISP to gain a better situational awareness of traffic incidents on the interstates/state highways.

Increase the availability of data to complement the 511 traveler information system for timelier traveler information.

Analyze the crowdsource data by comparing it to the State’s crash records to assist in determining the accuracy of the crowdsourced data.

Click for the Crowdsourcing for Operations Fact Sheet.

CROWDSOURCING FOR ADVANCING OPERATIONS: NEW & NOTEWORTHY

Image of an intersection at night, a long exposure has made the cars driving by appear as lines of light

Adventures in Crowdsourcing Webinar Series

Crowdsourcing for Advancing Operations is one of the Federal Highway Administration’s (FHWA) Every Day Counts (EDC) initiatives for the 2021-2022 round. The program is looking ...
Highway Crowdsourcing

STIC Incentive Grant Award: Crowdsourcing Traffic Data to Optimize Roadway Monitoring

The Federal Highway Administration recently awarded the New Jersey Department of Transportation (NJDOT) a $55,000 State Transportation Improvement Council (STIC) incentive grant for the purpose ...

DVRPC’s Sidewalk Inventory and Crowdsourcing Platform

The Delaware Valley Regional Planning Commission (DVRPC) is seeking to understand the region’s pedestrian infrastructure through the development of an online inventory, map, and platform ...

Final Report Released for the Connected Vehicles Program Pilot Testing of Technology for Distributing Road Service Safety Messages from Safety Service Patrols

NJDOT’s top priority is to improve highway safety. To support this goal, in September 2018, New Jersey began a pilot study of the effectiveness of ...

How SJTPO Refined Their Congestion Management Process with Crowdsourced Data

Through the Everyday Counts (EDC) program, FHWA identifies and deploys established but underutilized innovations through a state-based model, with the goals of streamlining project delivery, ...

Tech Talk! Webinar: Crowdsourcing for Local Operations

The NJDOT Bureau of Research hosted a Tech Talk! Webinar, Crowdsourcing for Local Operations, that illustrated how local agencies are working, often with state partners, ...

Connected Vehicles Program Pilot Testing of Technology for Safety Service Patrol Workers Continues

The pilot study continues to examine the effectiveness of connected vehicle technology to alert motorists to Safety Service Patrol (SSP) workers at an incident site. ...

Making Work Zones Smarter: Data-Driven Decision Making

In honor of Work Zone Safety Awareness Week, the NJDOT Bureau of Research hosted a Lunchtime Tech Talk, “Making Work Zones Smarter: Data-Driven Decision Making” ...

New Jersey Pilots Connected Vehicles Program to Protect Safety Service Patrol Staff

This study will examine the effectiveness of connected vehicle technology to alert motorists to Safety Service Patrol (SSP) workers at an incident site. ...

Targeted Overlay Pavement Solutions (TOPS)

What is Targeted Overlay Pavement Solutions (TOPS)?

Solutions for integrating innovative overlay procedures into practices that can improve performance, lessen traffic impacts, and reduce the cost of pavement ownership.

Approximately half of all infrastructure dollars are invested in pavements, and more than half of that investment is in overlays. By enhancing overlay performance, state and local highway agencies can maximize this investment and help ensure safer, longer-lasting roadways for the traveling public.

Improved Pavements that Last Longer

Many of the pavements in the nation's highway system have reached or are approaching the end of their design life. These roadways still carry daily traffic that often far exceeds their initial design criteria. Overlays are now available for both asphalt and concrete pavements that enable agencies to provide long-life performance under a wide range of traffic, environmental, and existing pavement conditions.

Concrete overlays now benefit from performance-engineered mixtures, including thinner-bonded and unbonded overlays with fiber reinforcement, interlayer materials, and new design procedures that improve durability and performance. Asphalt overlay mixtures have also advanced significantly with the use of stone-matrix asphalt (SMA), polymer-modified asphalt (PMA), and other materials and agents that reduce rutting, increase cracking resistance, and extend pavement life.

Benefits

Safety. Thousands of miles of rural and urban pavements need structural enhancement and improved surface characteristics, such as smoothness, friction, and noise. Targeted overlay pavement solutions can improve the condition of highways significantly in a relatively short time.

Cost Savings. Timely and well-designed overlay applications are consistently cost-effective because less subsurface work is required. In urban areas, impacts to utilities and pedestrian facilities are minimized.

Performance. Targeting overlay solutions to high-maintenance areas such as intersections, bus lanes, ramps, and curved alignments can pay immediate dividends in terms of reduced maintenance needs, fewer work zones, and improved safety.

Learn more about this EDC-6 Innovation.

TOPS in NJ

Stage of Innovation:
DEVELOPMENT
(July 2021)

New Jersey has been a leader in Targeted Overlay Pavement Solutions (TOPS). The following activities occurred in under previous EDC rounds:

High-Performance Thin Overlay (HPTO). NJDOT incorporated HPTO into its standard specifications and has used it for the preservation of good pavement and as the surface course on some composite pavement overlays. HPTO is also used by the Structural Design unit for bridge deck overlay.

Crack Attenuating Mixture. NJDOT incorporated this into its standard specifications and has used it for the intermediate course on some composite pavement overlays followed by SMA surface course.

Stone Matrix Asphalt (SMA). NJDOT incorporated SMA into standard specifications and has used it for the surface course on high traffic pavement, for the surface course on some composite pavement overlays, and over top of BRIC mix as overlay of composite pavements.

Asphalt Rubber Gap-Graded (ARGG). NJDOT incorporated ARGG into its standard specifications and has used it for the surface and/or intermediate course on some composite pavement overlays.

Open-Graded Friction Course (OGFC). NJDOT incorporated OGFC into its standard specifications and has used it for full depth porous asphalt pavements in outside shoulders, parking lots, pathways, sidewalks and other low traffic pavements.

Ultra-Thin Bonded Wearing Course (UTBWC) / Ultra-Thin Friction Course (UTFC). NJDOT incorporated UTFC into its standard specifications and used it for preservation of good pavement and for the surface course on some resurfacing pavement overlays.

What’s Next?

The Department is working to pilot a demonstration of Ultra-HPTO / Highly Modified Asphalt (HiMA). It is also working with academic partners to develop a NJDOT Enhanced Friction Overlay (EFO) specification for lab testing and a potential pilot project.

Targeted Overlay Pavement Solutions (TOPS): NEW & NOTEWORTHY

Targeted Overlay Payment Solutions (TOPS): NJDOT Example Featured

The FHWA's EDC News Weekly Newsletter featured NJDOT's use of HPTO as a cost-effective pavement preservation tool. ...
Reads: Lunchtime Tech Talk! The NJDOT's Pavement Support Program (PSP), Goals, Deliverables, and the Future, Thursday July 22, 2021, 12pm to 1:15pm

Lunchtime Tech Talk! WEBINAR: NJDOT’s Pavement Support Program—Goals, Deliverables and the Future

Dr. Thomas Bennert, who leads the Pavement Support Program (PSP), discussed how the group's research supports NJDOT's efforts to improve pavements across the state. ...

Pavement Preservation Treatments at NJDOT

This video features the work that the NJDOT Pavement and Drainage Management and Technology Unit is doing to advance Pavement Preservation treatments on state roads to increase ...

Paving the Way to Better Roads at Lower Costs

Pavement preservation is just one example among many of how NJDOT is committed to keeping New Jersey’s roadways in a state of good repair and ...

Quantifying Greenhouse Gas Emissions of Asphalt Pavement Preservation at Construction and Use Stages Using Life Cycle Assessment

A recent study found that pavement preservation techniques can reduce greenhouse gas emissions and contribute to savings for both transportation agencies and drivers. ...

Virtual Public Involvement (VPI)

What is Virtual Public Involvement (VPI)?

Innovative virtual public involvement techniques provide State departments of transportation (DOTs), transit agencies, metropolitan planning organizations (MPOs), and rural transportation planning organizations (RTPOs) with a platform to inform the public and receive feedback. These strategies increase the number and variety of channels available to agencies for remotely disseminating information to the public and create efficiencies in how input is collected and considered, which can potentially accelerate planning and project development processes.

Encouraging Public Engagement

Public involvement is a critical component in the transportation decision-making process, allowing for meaningful consideration and input from interested individuals. As daily users of the transportation system, the public has useful opinions, insights, and observations to share with their State DOT and local agencies on the performance and needs of the transportation system or on specific projects. Early and strong public engagement has the potential to accelerate project delivery by helping identify and address public concerns early in the planning process, thereby reducing delays from previously unknown interests late in the project delivery process.

Nearly all State DOTs and most local agencies use websites to post information about their activities. With the increased use of social media tools and mobile applications, the public can access user-friendly features such as online videos, podcasts, crowdsourced maps, and other interactive forums to receive information and provide input.

Benefits

Efficiency and Low Cost. Virtual tools and platforms can be made accessible to communities efficiently, many at a lower cost than traditional public engagement methods.

Accelerated Project Delivery. Robust public engagement helps identify issues early in the project planning process, which reduces the need to revisit decisions.

Communication and Collaboration. Virtual public involvement can aid in establishing a common vision for transportation and ensure the opinions and needs of the public are understood and considered during transportation planning and project development.

Expanded Engagement. Virtual tools can facilitate inclusion of stakeholders who do not participate in traditional approaches to public involvement. Greater and more diverse engagement can improve project quality.

Learn more about this EDC-6 Innovation.

Virtual Public Involvement in NJ

Stage of Innovation:
DEMONSTRATION
(July 2021)

Collaboration. NJDOT has collaborated with the state's three MPOs to integrate VPI practices in all stages of capital project implementation, from concept development to construction.

Local Agency Advancement. New Jersey's counties and municipalities are using lessons learned from state efforts to increase their engagement with local stakeholders.

Expanding Reach. Transportation partners throughout the state have utilized VPI practices in a wide variety of projects, especially since the onset of the COVID-19 pandemic. This work has provided robust demonstration of expanded attendance to VPI online events. However, concerns still exist about documentation of virtual feedback versus that gained through in-person communications, as well as the issue of equity in reaching, and gaining insight, from a wide variety of participants including underserved and disadvantaged populations.

What's Next?

NJDOT and its partners are seeking to increase public engagement of various stakeholder groups. The Department plans to include VPI in its updated Public Involvement Action Plan. The agency understands that input through VPI is as important, and considered equal to, in-person input. VPI can enhance and increase access to many populations, particularly those who are underserved, but the need exists to strike a balance of in-person and virtual engagement.

Virtual Public Involvement (VPI): NEW & NOTEWORTHY

Virtual Public Involvement Peer Exchanges and Video Case Studies

Transportation agencies can increase meaningful public involvement in planning and project development by integrating virtual tools into their overall public involvement approach. FHWA has ...

Innovation Spotlight Interview: Virtual Public Involvement at NJDOT

At NJDOT, the COVID-19 pandemic presented new challenges and opportunities for the agency’s public engagement efforts. This interview with NJDOT staff discusses how the need ...

NJ Transportation Agencies Featured for Their Innovative and Virtual Public Involvement Approaches

FHWA promotes virtual public involvement and other innovative public involvement tools through its Every Day Counts-5 innovations. ...

UHPC for Bridge Preservation and Repair

What is UHPC for Bridge Preservation and Repair?

Ultra-high performance concrete (UHPC) is a new material for bridge construction that has become popular for field-cast connections between prefabricated bridge elements. Bridge preservation and repair (P&R) is an emerging and promising application for UHPC. UHPC-based repair solutions are robust, and offer superior strength, durability, and improved life-cycle cost over traditional methods. State and local agencies can deploy UHPC for bridge preservation and repair to maintain or improve bridge conditions.

Ultra-high performance concrete (UHPC) offers enhanced durability and improved life-cycle cost performance for bridge preservation and repair.

Keeping bridges in a state of good repair is essential to keeping the transportation system operating efficiently. Agencies at all levels can deploy UHPC for bridge preservation and repair to maintain or improve bridge conditions cost effectively.

Stronger Repairs, Extended Service Life

Because of its strength and durability, UHPC can be an optimum solution for some repairs. UHPC can be used in situations that normally use conventional concrete or repair mortars, and in some cases those that use structural steel. Some UHPC mixes gain strength rapidly, so bridges could be opened to traffic 24 hours after completing the necessary repairs. Additionally, UHPC repairs are long lasting and resilient, requiring less maintenance and fewer follow-up repairs than conventional methods. In some cases, they can outlive and outperform their conventional counterparts—UHPC repairs could be the strongest and most durable part of the bridge.

Benefits

Versatility. UHPC can generally be used anywhere other types of concrete would be used, and due to its strength and durability, it can be the optimum material for many applications.

Durability. UHPC-based repairs are long-lasting and require less maintenance and fewer follow-up repairs.

Cost Savings. UHPC repairs can outlive and outperform their conventional counterparts, resulting in life-cycle cost savings. UHPC bridge deck overlays and link slabs can extend the service life of bridges well beyond that of traditional preservation and repair strategies.

Learn more about this EDC-6 Innovation.

UHPC for Bridge Preservation and Repair in NJ

Stage of Innovation:
DEVELOPMENT
(July 2021)

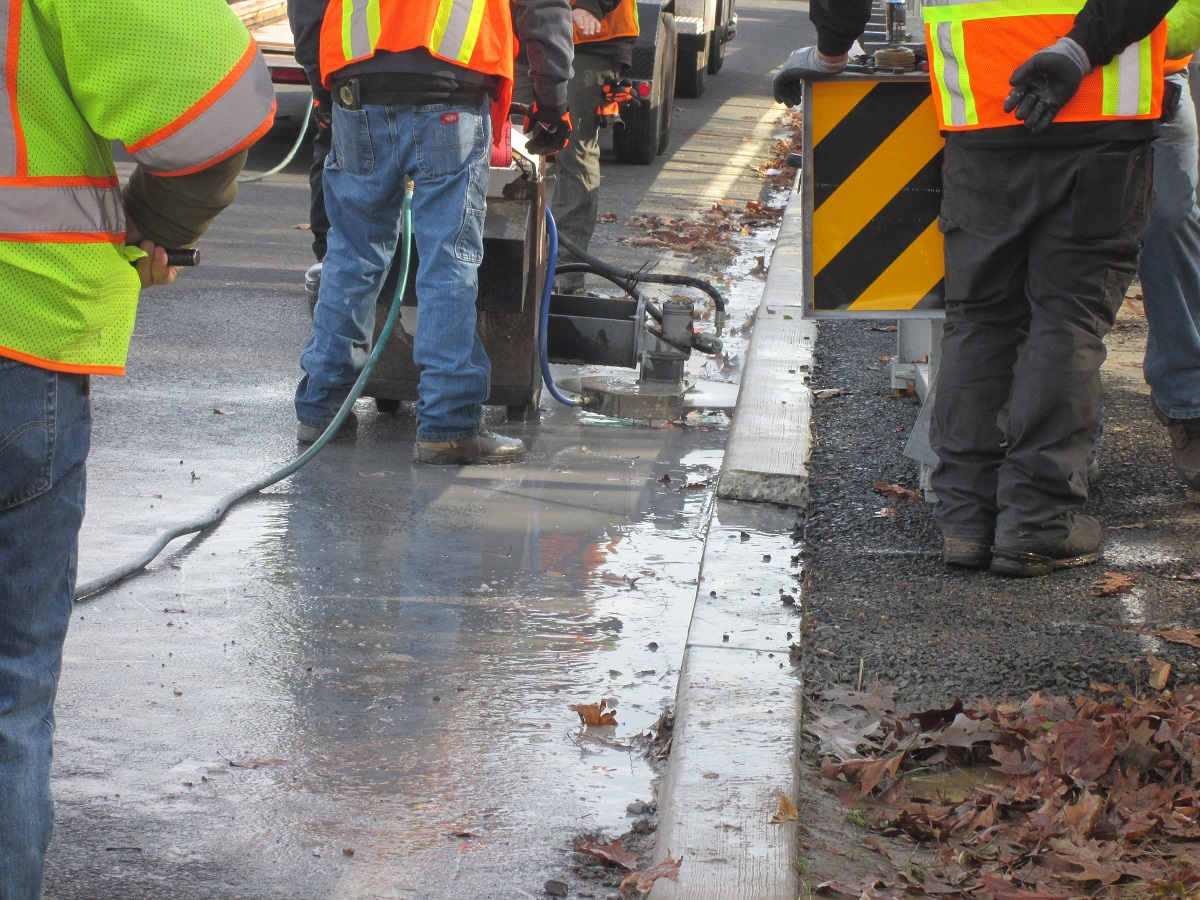

Using UHPC. NJDOT completed construction of two bridge preservation projects in 2020. The agency is currently gathering information on performance and usability from these two pilot projects, which include four bridges using UHPC overlay.

The Future of UHPC for Bridge Preservation & Repair (P&R). The agency anticipates incorporating UHPC for bridge preservation and repair in its new design manual, using data collected from the current pilots and will further investigate performance and examine life cycle costs. NJDOT will use these indicators to determine future usage and applicability with additional research through the Bridge Research Program.

Building Support. Communicating UHPC information related to bridge preservation and repair to stakeholders statewide is vital and will be pursued with support from NJDOT Local Aid at select events and gatherings with design engineers and, as  appropriate, through the NJDOT Research Showcase or Tech Talk! events. Social media platforms will also be used to communicate UHPC information to a broad audience.

What’s Next?

A long-term program is being finalized that will include impact echo testing and shear wave tomography of the UHPC on bridge specimens. Also, potential research on UHPC using Fiber-Reinforced Polymers (FRP) with the NJDOT Bridge Resource Program is being considered. NJDOT is also collaborating with AASHTO to develop a UHPC course targeted to the construction industry.

UHPC for Bridge Preservation and Repair: NEW & NOTEWORTHY

Stronger, More Resilient Bridges: Ultra High-Performance Concrete (UHPC) Applications in New Jersey

How the emerging innovation of Ultra High-Performance Concrete (UHPC) is being implemented in New Jersey. ...

Ultra-High Performance Concrete for Bridge Preservation and Repair: NJDOT Example Featured

The FHWA's EDC News Weekly Newsletter featured how NJDOT has applied UHPC for bridge preservation and repair. ...

EDC-4 Final Report Highlights Innovations

The EDC-4 Final Report highlights the results of round four of the Every Day Counts program to rapidly deploy proven innovations to enhance the transportation ...
