UHPC Bridge Preservation and Repair – NJ Efforts Highlighted

FHWA promotes UHPC for Bridge Preservation & Repair through its Every Day Counts (EDC-6) innovations. The FHWA's EDC Newsletter of April 28, 2022 featured Rutgers University's state-of-the-art Bridge Evaluation and Accelerated Structural Testing (BEAST) center.  FHWA has sponsored the use of the BEAST to evaluate emerging bridge preservation technologies including UHPC.  Below is a reprint of the newsletter article that recognizes these efforts as its Innovation of the Month for UHPC Bridge Preservation and Repair.

BEAST® Facility (Credit: Rutgers University)

Wouldn’t it be great to quickly test the performance of a UHPC bridge deck overlay? It can be challenging to test and evaluate the long-term performance of new bridge preservation innovations because it would normally take years of monitoring the in-service behavior of such a technology on actual bridge structures to make an adequate assessment. Alternatively, Rutgers University’s state-of-the-art Bridge Evaluation and Accelerated Structural Testing (BEAST®) center provides a new opportunity to evaluate emerging preservation technologies. Built in 2015, the BEAST facility aims to develop high-quality data of bridge deterioration and to expand our knowledge of bridge performance through full-scale accelerated testing. The facility is capable of enclosing a 50-foot long bridge within an environmental chamber and subjecting the bridge to realistic rolling wheel loads, freeze-thaw cycles, and even the application of deicing chemicals. As a result, this facility can impose 10 to 20 years of ageing in less than 12 months.

FHWA is sponsoring the first project to utilize the BEAST® facility, and seeks to establish the long-term performance of bare reinforced concrete bridge decks and overlay systems among other variables. A two lane, 50 foot simply-supported bridge built with steel girders was constructed and began accelerated testing in 2019. To date, it’s been subjected to over 2-million passes of rolling load, 85 freeze-thaw cycles, and over 3000 gallons of salt brine. As a result, deck deterioration has reached a point where, in practice, an overlay would commonly be installed for rehabilitation and preservation purposes.

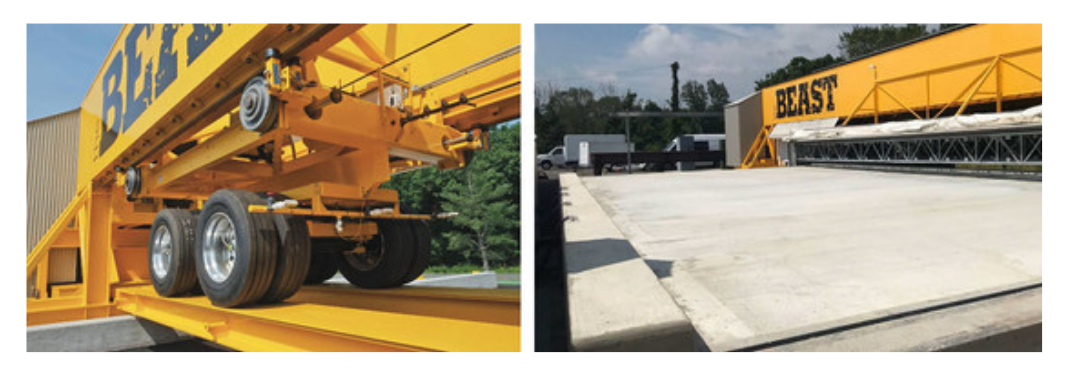

Rolling-Load Assembly in BEAST® Lab (left); Bridge Specimen in BEAST® Lab (right) (Credit: Rutgers University)

UHPC is one of the overlay systems that will be installed on this bridge specimen for evaluation. The UHPC overlay will be installed using materials and construction practices that are commonly deployed in the field. Once installed, accelerated testing will resume for at least 12 months, or until significant deterioration is again observed. Data will be collected, which will help establish quantitative measure of the overlays’ ability to perform long-term and under realistic conditions. Data already shows that UHPC is long-lasting and resilient, but at the end of this research, researchers will be able to say with greater confidence how long UHPC overlays may last in service.

For more information on UHPC for Bridge Preservation & Repair, contact Zach Haber, FHWA Turner-Fairbank Highway Research Center, or Justin Ocel, FHWA Resource Center.
