UHPC for Bridge Preservation and Repair

What is UHPC for Bridge Preservation and Repair?

Ultra-high performance concrete (UHPC) is a new material for bridge construction that has become popular for field-cast connections between prefabricated bridge elements. Bridge preservation and repair (P&R) is an emerging and promising application for UHPC. UHPC-based repair solutions are robust, and offer superior strength, durability, and improved life-cycle cost over traditional methods. State and local agencies can deploy UHPC for bridge preservation and repair to maintain or improve bridge conditions.

Ultra-high performance concrete (UHPC) offers enhanced durability and improved life-cycle cost performance for bridge preservation and repair.

Keeping bridges in a state of good repair is essential to keeping the transportation system operating efficiently. Agencies at all levels can deploy UHPC for bridge preservation and repair to maintain or improve bridge conditions cost effectively.

Stronger Repairs, Extended Service Life

Because of its strength and durability, UHPC can be an optimum solution for some repairs. UHPC can be used in situations that normally use conventional concrete or repair mortars, and in some cases those that use structural steel. Some UHPC mixes gain strength rapidly, so bridges could be opened to traffic 24 hours after completing the necessary repairs. Additionally, UHPC repairs are long lasting and resilient, requiring less maintenance and fewer follow-up repairs than conventional methods. In some cases, they can outlive and outperform their conventional counterparts—UHPC repairs could be the strongest and most durable part of the bridge.

Benefits

Versatility. UHPC can generally be used anywhere other types of concrete would be used, and due to its strength and durability, it can be the optimum material for many applications.

Durability. UHPC-based repairs are long-lasting and require less maintenance and fewer follow-up repairs.

Cost Savings. UHPC repairs can outlive and outperform their conventional counterparts, resulting in life-cycle cost savings. UHPC bridge deck overlays and link slabs can extend the service life of bridges well beyond that of traditional preservation and repair strategies.

Learn more about this EDC-6 Innovation.

UHPC for Bridge Preservation and Repair in NJ

Stage of Innovation:
ASSESSMENT
(December 2022)

Using UHPC. NJDOT completed construction of two bridge preservation projects in 2020. From its assessment of information on performance and usability from these pilot projects, which include four bridges using UHPC overlay, the agency considers further implementation promising. UHPC is excellent for preservation and is being considered for additional deployments. UHPC has been shown to increase service life but is currently more expensive than other methods. More widespread use/experience may reduce cost. The first UHPC link slab application is in the construction phase. Additional UHPC Link-Slab applications are currently in the Final Design Phase.

Communicating UHPC Information on Bridge Preservation & Repair. The State participated in workshops, webinars, and peer exchanges related to UHPC for Bridge P&R, including:

  • NJDOT Hosted FHWA Workshop UHPC EDC-6 P&R
  • International Bridge Conference Poster Session
  • NYSDOT UHPC Link-slab Peer Exchange 2022
  • ABC December 2022 presentation and paper
  • NJ STIC Meeting, 4th Quarter 2022

What’s Next?

The Future of UHPC for Bridge Preservation & Repair (P&R). The agency anticipates incorporating UHPC for bridge preservation and repair in its new design manual, using data collected from the current pilots and will further investigate performance and examine life cycle costs. NJDOT will use these indicators to determine future usage and applicability with additional research through the Bridge Research Program.

Industry experience in UHPC applications is not keeping up with agency goals. UHPC is not yet standardized for operational use which leads to a lack of consistency in the applied product, a lack of UHPC repair materials and methods, and significantly higher initial cost. Material and labor for UHPC are currently more expensive than traditional bridge preservation techniques. UHPC is used for repair projects that were not pre-planned; contractors may not have the experience or comfort with using the material. The material can be difficult to work with, and contractors need training.

However, the extension in bridge life span may result in a good return on investment. The programming/funding authority may need to address the issue of allowing UHPC higher costs into a project budget.

Further research and a possible pooled fund project would be beneficial to increase knowledge.

UHPC for Bridge Preservation and Repair: NEW & NOTEWORTHY

Ultra High-Performance Concrete (UHPC) Applications in New Jersey – An Update

Ultra High-Performance Concrete (UHPC) Applications in New Jersey – An Update

UHPC for Bridge Preservation and Repair is a model innovation that was featured in FHWA’s Every Day Counts Program (EDC-6).  UHPC is recognized as an ...
Presentation: Design, Construction, and Evaluation of UHPC Bridge Deck Overlays for NJDOT

Presentation: Design, Construction, and Evaluation of UHPC Bridge Deck Overlays for NJDOT

NJDOT recently installed UHPC Bridge Deck overlays on four bridges. NJDOT engineers explained the rationale for UHPC and highlighted key lessons in bridge selection, existing ...
UHPC Bridge Preservation and Repair – NJ Efforts Highlighted

UHPC Bridge Preservation and Repair – NJ Efforts Highlighted

The FHWA's EDC Newsletter of April 28th highlighted a project to test UHPC bridge preservation materials, in partnership with Rutgers University Below is a reprint ...
Stronger, More Resilient Bridges: Ultra High-Performance Concrete (UHPC) Applications in New Jersey

Stronger, More Resilient Bridges: Ultra High-Performance Concrete (UHPC) Applications in New Jersey

How the emerging innovation of Ultra High-Performance Concrete (UHPC) is being implemented in New Jersey. ...
Ultra-High Performance Concrete for Bridge Preservation and Repair: NJDOT Example Featured

Ultra-High Performance Concrete for Bridge Preservation and Repair: NJDOT Example Featured

The FHWA's EDC News Weekly Newsletter featured how NJDOT has applied UHPC for bridge preservation and repair. ...
EDC-4 Final Report Highlights Innovations

EDC-4 Final Report Highlights Innovations

The EDC-4 Final Report highlights the results of round four of the Every Day Counts program to rapidly deploy proven innovations to enhance the transportation ...

Targeted Overlay Pavement Solutions (TOPS)

What is Targeted Overlay Pavement Solutions (TOPS)?

Solutions for integrating innovative overlay procedures into practices that can improve performance, lessen traffic impacts, and reduce the cost of pavement ownership.

Approximately half of all infrastructure dollars are invested in pavements, and more than half of that investment is in overlays. By enhancing overlay performance, state and local highway agencies can maximize this investment and help ensure safer, longer-lasting roadways for the traveling public.

Improved Pavements that Last Longer

Many of the pavements in the nation's highway system have reached or are approaching the end of their design life. These roadways still carry daily traffic that often far exceeds their initial design criteria. Overlays are now available for both asphalt and concrete pavements that enable agencies to provide long-life performance under a wide range of traffic, environmental, and existing pavement conditions.

Concrete overlays now benefit from performance-engineered mixtures, including thinner-bonded and unbonded overlays with fiber reinforcement, interlayer materials, and new design procedures that improve durability and performance. Asphalt overlay mixtures have also advanced significantly with the use of stone-matrix asphalt (SMA), polymer-modified asphalt (PMA), and other materials and agents that reduce rutting, increase cracking resistance, and extend pavement life.

Benefits

Safety. Thousands of miles of rural and urban pavements need structural enhancement and improved surface characteristics, such as smoothness, friction, and noise. Targeted overlay pavement solutions can improve the condition of highways significantly in a relatively short time.

Cost Savings. Timely and well-designed overlay applications are consistently cost-effective because less subsurface work is required. In urban areas, impacts to utilities and pedestrian facilities are minimized.

Performance. Targeting overlay solutions to high-maintenance areas such as intersections, bus lanes, ramps, and curved alignments can pay immediate dividends in terms of reduced maintenance needs, fewer work zones, and improved safety.

Learn more about this EDC-6 Innovation.

TOPS in NJ

Stage of Innovation:
DEMONSTRATION
(December 2022)

New Jersey has been a leader in Targeted Overlay Pavement Solutions (TOPS). The following activities occurred in under previous EDC rounds:

High-Performance Thin Overlay (HPTO). NJDOT incorporated HPTO into its standard specifications and has used it for the preservation of good pavement and as the surface course on some composite pavement overlays. HPTO is also used by the Structural Design unit for bridge deck overlay.

Crack Attenuating Mixture. NJDOT incorporated this into its standard specifications and has used it for the intermediate course on some composite pavement overlays followed by SMA surface course.

Stone Matrix Asphalt (SMA). NJDOT incorporated SMA into standard specifications and has used it for the surface course on high traffic pavement, for the surface course on some composite pavement overlays, and over top of BRIC mix as overlay of composite pavements.

Asphalt Rubber Gap-Graded (ARGG). NJDOT incorporated ARGG into its standard specifications and has used it for the surface and/or intermediate course on some composite pavement overlays.

Open-Graded Friction Course (OGFC). NJDOT incorporated OGFC into its standard specifications and has used it for full depth porous asphalt pavements in outside shoulders, parking lots, pathways, sidewalks and other low traffic pavements.

Ultra-Thin Bonded Wearing Course (UTBWC) / Ultra-Thin Friction Course (UTFC). NJDOT incorporated UTFC into its standard specifications and used it for preservation of good pavement and for the surface course on some resurfacing pavement overlays.

What’s Next?

The Rt.42 Pavement Preservation project, using Ultra-HPTO / Highly Modified Asphalt (HiMA), is in construction. The Department plans to monitor closely and analyze the pros and cons of utilizing this type of asphalt mixture on NJ concrete pavements.

NJDOT Pavement Management unit procured new skid testing equipment in 2022. Skid testing was done for 9 projects by NJDOT Pavement Management unit on High Friction Surface Treatment (HFST)sections. Skid testing by the NJDOT Pavement Management unit on high friction surface treatment sections and alternative enhanced friction overlay (EFO) sections will continue using the new equipment.  There are plans to test, analyze, and monitor skid test results to advise the department on future development and use of enhanced friction overlay treatments. The Department is also working with an academic partner to perform companion testing of these friction test sections with a Dynamic Friction Tester (DFT) unit.

Ultra High Performance Thin Overlay is included in one project (UPC 213090). Specification is finalized and the item number has been created.

Compilation and analysis of all data on the different Enhanced Friction overlay surfaces, will lead to better information for NJDOT staff and others on the recommended use and practices with EFOs. Skid test equipment function and calibration are critical to collecting and analyzing the data. Other test methods will be explored.

Targeted Overlay Pavement Solutions (TOPS): NEW & NOTEWORTHY

Targeted Overlay Payment Solutions (TOPS): NJDOT Example Featured

Targeted Overlay Payment Solutions (TOPS): NJDOT Example Featured

The FHWA's EDC News Weekly Newsletter featured NJDOT's use of HPTO as a cost-effective pavement preservation tool. ...
Lunchtime Tech Talk! WEBINAR: NJDOT’s Pavement Support Program—Goals, Deliverables and the Future

Lunchtime Tech Talk! WEBINAR: NJDOT’s Pavement Support Program—Goals, Deliverables and the Future

Dr. Thomas Bennert, who leads the Pavement Support Program (PSP), discussed how the group's research supports NJDOT's efforts to improve pavements across the state. ...
Pavement Preservation Treatments at NJDOT

Pavement Preservation Treatments at NJDOT

This video features the work that the NJDOT Pavement and Drainage Management and Technology Unit is doing to advance Pavement Preservation treatments on state roads to increase ...
Paving the Way to Better Roads at Lower Costs

Paving the Way to Better Roads at Lower Costs

Pavement preservation is just one example among many of how NJDOT is committed to keeping New Jersey’s roadways in a state of good repair and ...
Quantifying Greenhouse Gas Emissions of Asphalt Pavement Preservation at Construction and Use Stages Using Life Cycle Assessment

Quantifying Greenhouse Gas Emissions of Asphalt Pavement Preservation at Construction and Use Stages Using Life Cycle Assessment

A recent study found that pavement preservation techniques can reduce greenhouse gas emissions and contribute to savings for both transportation agencies and drivers. ...

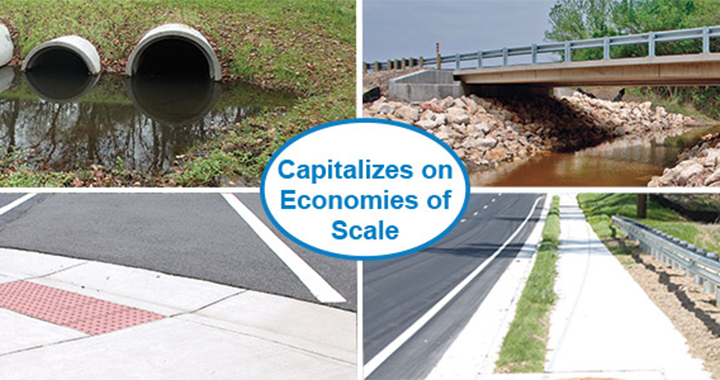

Project Bundling

What is Project Bundling?

The U.S. transportation system is aging, with many States seeing an ever-increasing number of highways and bridges that need more immediate attention. As a result, system performance is reduced, leading to potentially adverse impacts to quality of life, mobility, travel time, freight movements, and emergency response times. Often the most pressing needs are on the local systems, as evidenced by bridges that are being posted for reduced loads.

Project bundling helps address this national issue. By awarding a single contract for several similar preservation, rehabilitation, or replacement projects, agencies can streamline design and construction, reduce costs, and effectively decrease transportation project backlogs.

This proven practice draws upon efficiencies found through project delivery streamlining, as well as benefits from alternative and traditional contracting methods. A bundled contract could cover a single county, district, or State, and it may be tiered to allow a combination of work types (design, preservation, rehabilitation, or complete replacement). Bundling design and construction contracts saves procurement time, leverages design expertise, and builds momentum toward keeping critical assets in a state of good repair.

Learn more about this EDC-5 Innovation.

NJ's Use of Project Bundling

Stage of Innovation:
INSTITUTIONALIZED

New Jersey implemented project bundling prior to the start of EDC-5:

Adopted Project Bundling Across NJDOT. Project bundling has been used in NJ for years as a way to save time in the procurement of designers and contractors, as well as to save money through economies of scale and reduced staff paperwork. It is incorporated into the Department's policies and procedures and most commonly referred to as batch solicitation.

Routinely Uses Project Bundling for the Delivery of Federally-Funded Capital Projects and State-Funded Maintenance Projects. NJDOT assesses projects and programs at the planning phase for their suitability for a project bundling approach for either design, construction, or both. Major programs that use project bundling include:

- Sign Structure Replacement Program
- ADA Compliance Program
- Maintenance Roadway Repair Contracts
- Statewide Guiderail Replacement

When possible, NJDOT looks to use project bundling on smaller projects as well to save time and money.

PROJECT BUNDLING: NEW & NOTEWORTHY

Project Bundling Webinar Series

Project Bundling Webinar Series

FHWA provides online webinars on the subject of project bundling to share best practices with interested agencies. ...
Project Bundling

Project Bundling

Awarding a single contract for several preservation, rehabilitation, or replacement projects helps agencies reduce costs and achieve program goals. Project bundling offers a comprehensive and accelerated ...
